Wi-Fi 7
OmniAccess Stellar AP1511
- Features
- Entry-level indoor Wi-Fi 7 access point featuring tri-band 2.4 GHz, 5 GHz, and 6 GHz radios to address the dense and high-capacity requirements of next-generation mobility and IoT-enabled networks
- Dedicated scanning radio continuously monitors the RF environment, inherently improving network security and Wi-Fi quality
- Supports a maximum throughput of up to 9.22 Gbps, delivering high-throughput and low-latency Wi-Fi 7 connectivity
- Provides one 5GE Multi-Gigabit Ethernet uplink with Power over Ethernet (PoE) input
- Integrated Bluetooth/Zigbee radio supports a broad range of IoT endpoints and applications, including location analytics and building automation
- Supports three management modes — Express, on-premises, and cloud — through a single software version, simplifying IT operations
Description
The Alcatel-Lucent Enterprise OmniAccess® Stellar AP1511 is an entry-level indoor Wi-Fi 7 access point designed to address connectivity challenges driven by the growing number of IoT devices and next-generation mobility technologies. Based on the IEEE 802.11be Wi-Fi 7 standard, the AP1511 delivers higher data throughput, improved power transmission, and reduced latency for modern enterprise users, IoT environments, and emerging AI-powered applications.
The AP1511 features tri-band radios operating across the 2.4 GHz, 5 GHz, and 6 GHz bands to serve the dense and high-capacity requirements of next-generation mobility and IoT-enabled networks. It supports maximum throughput of up to 9.22 Gbps and provides one 5GE Multi-Gigabit Ethernet uplink with PoE input, delivering high-speed wired connectivity for next-generation enterprise wireless networks.
Beyond Wi-Fi 7 performance, the AP1511 includes a dedicated scanning radio to improve network security and Wi-Fi quality, along with an integrated Bluetooth/Zigbee radio for enterprise IoT connectivity, location analytics, and building automation services. Express, on-premises, and cloud management options provide deployment flexibility for different enterprise network requirements.
Features
- Advanced Wi-Fi 7 capabilities: Supports IEEE 802.11be features including Multi-Link Operation (MLO), MU-MIMO, up to 320 MHz channel bandwidth, 4096-QAM, Multi Resource Unit (MRU), Preamble Puncturing, and Restricted Target Wake Time (R-TWT)
- Dedicated scanning radio: Continuously scans the wireless environment to enhance network security and Wi-Fi quality
- IoT integration: Integrated Bluetooth/Zigbee radio supports a broad range of IoT endpoints and applications, including location analytics and building automation
- Enhanced wireless security: Supports WPA3, with advanced security capabilities including wIDS/wIPS, built-in DPI, and a dedicated scanning radio
- OmniVista network management: Supported by the OmniVista Network Management System with cloud-based and on-premises deployment models
- Simplified cluster deployment: Supports cluster architecture for simplified plug-and-play deployment of up to 255 access points
- Advanced Quality of Service: Supports finely tuned QoS parameters to provide appropriate service levels for applications such as voice, video, and desktop sharing
- Radio Dynamic Adjustment (RDA): Automatically assigns channels (DFS) and power settings (TPC), helping access points avoid radio frequency interference (RFI) and maintain reliable, high-performance WLAN connectivity

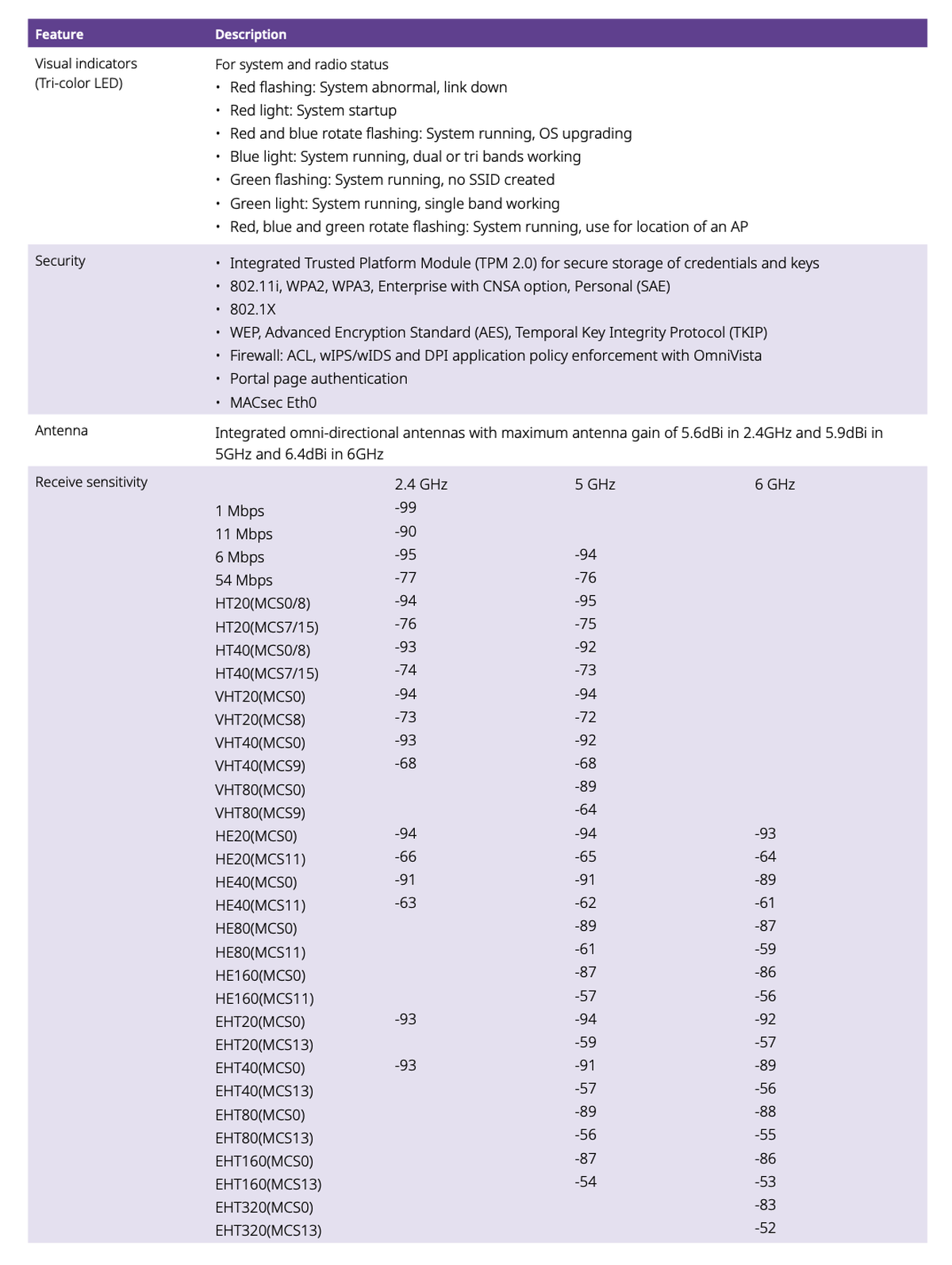

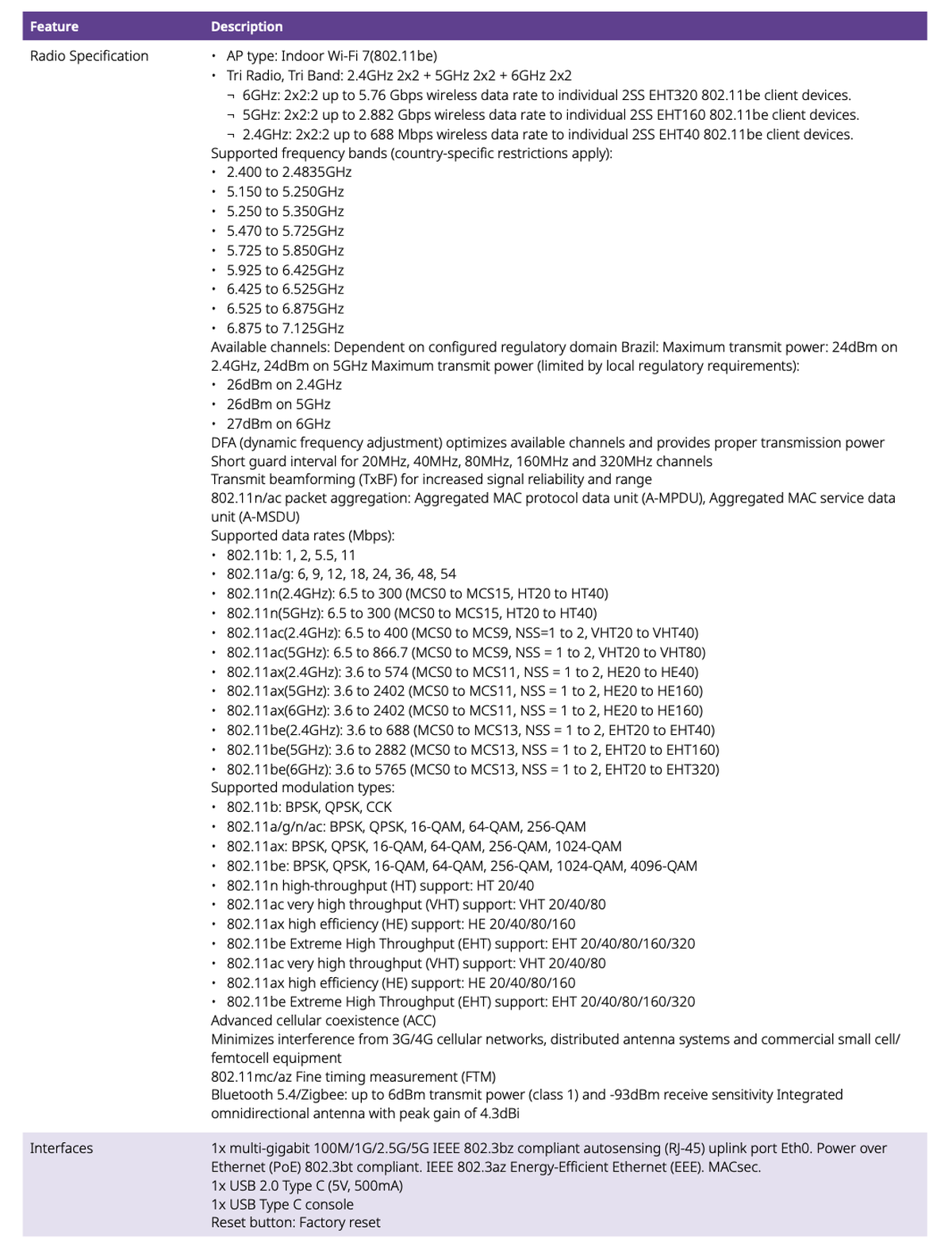

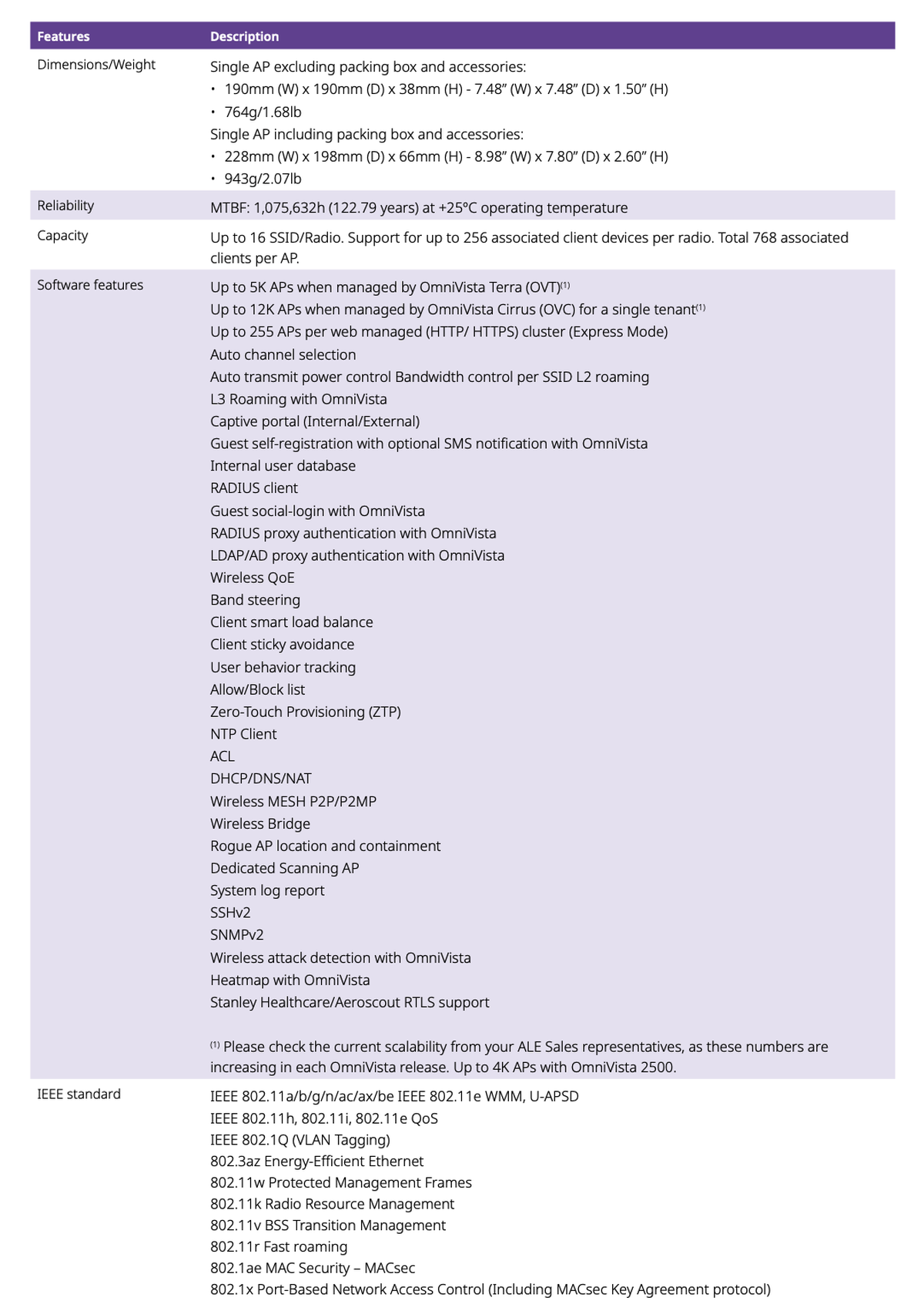

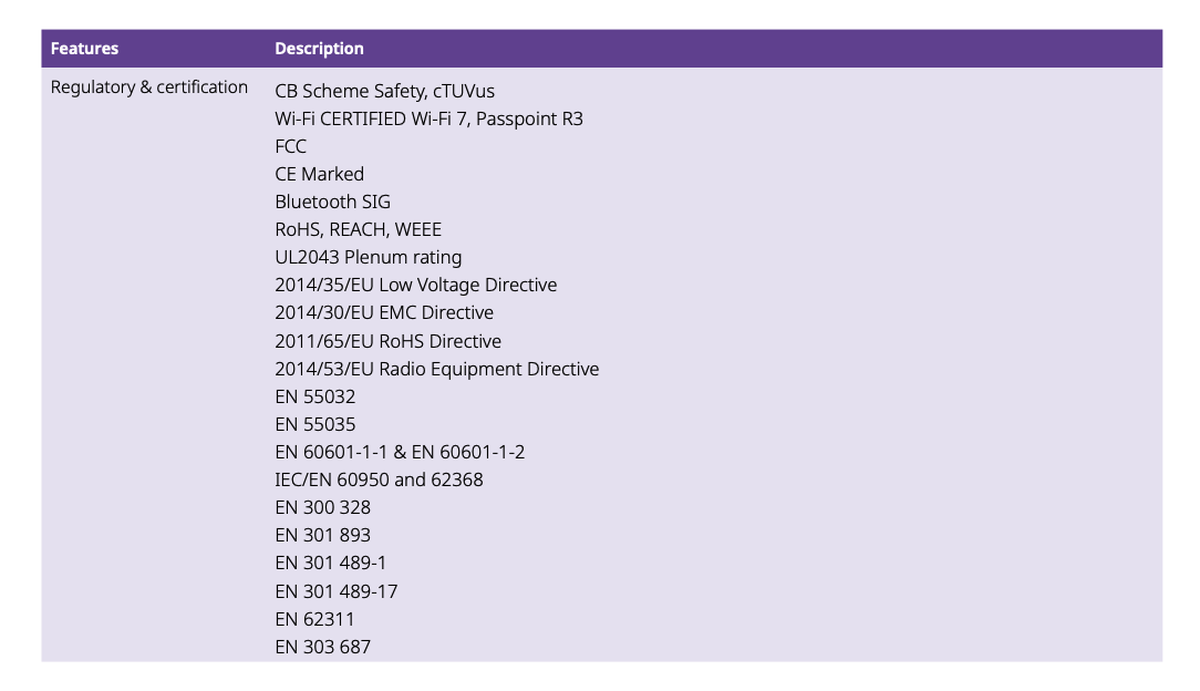

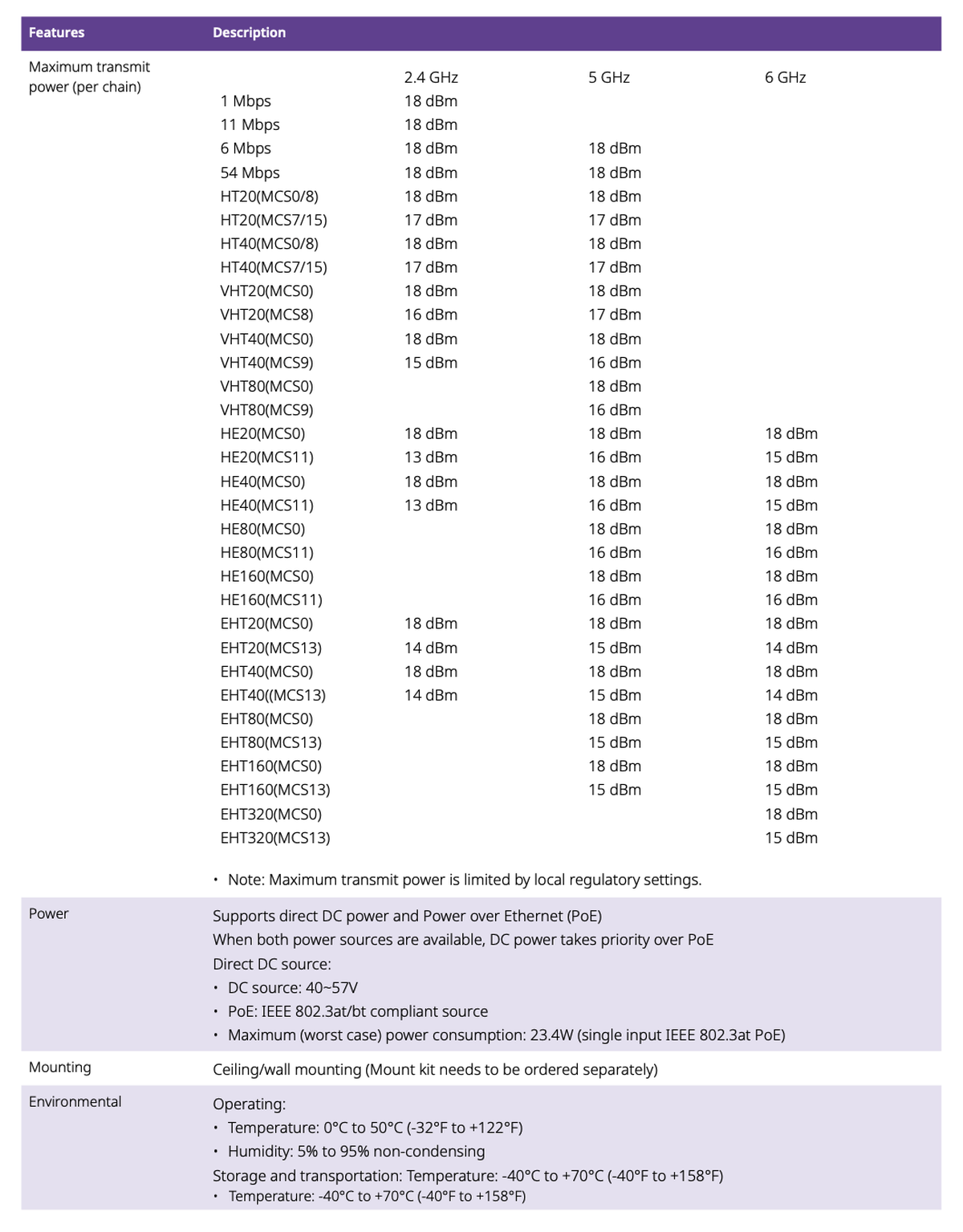

Specifications
.png)
.png)
.png)
.png)
.png)
Related Documents
OmniAccess Stellar AP1511 Datasheet
Official Alcatel-Lucent Enterprise OmniAccess Stellar AP1511 datasheet, including detailed technical specifications, Wi-Fi 7 capabilities, radio specifications, 5GE network interface, Bluetooth/Zigbee connectivity, network security, power, and related product features.
