Wi-Fi 7
OmniAccess Stellar AP1561
- Features
- Entry-level outdoor Wi-Fi 7 access point designed for simple, cost-effective deployments in harsh outdoor environments
- Offers 2.4 GHz, 5 GHz, and 6 GHz radios to address the high-capacity connectivity needs of next-generation mobility and IoT-enabled networks
- Supports a maximum aggregate throughput of 9.328 Gbps
- Provides one 5 Gigabit Multi-Gigabit Ethernet uplink port
- IP67-rated design for reliable operation in demanding outdoor environments
- Ready for 6 GHz operation with Automated Frequency Coordination (AFC); in RF domains where outdoor 6 GHz operation is not permitted, the radio can be software-configured to operate in either the 6 GHz or 5 GHz band
- Supports three management modes — Express, on-premises, and cloud — through a single software version, simplifying IT operations
Description
The Alcatel-Lucent Enterprise OmniAccess® Stellar AP1561 is an entry-level outdoor Wi-Fi 7 access point designed for simple and cost-effective deployments in harsh environments. Based on IEEE 802.11be Wi-Fi 7 technology, it operates across the 2.4 GHz, 5 GHz, and 6 GHz bands and delivers a maximum aggregate throughput of 9.328 Gbps to support the connectivity requirements of next-generation mobility and IoT-enabled networks.
The OmniAccess Stellar AP1561 features an IP67-rated rugged design for demanding outdoor environments. With an operating temperature range from -40°C to +65°C, it provides reliable wireless connectivity in challenging environmental conditions.
The AP1561 is also ready for 6 GHz operation and supports Automated Frequency Coordination (AFC). In RF domains where the 6 GHz band is not permitted for outdoor use, the radio can be software-configured to operate in either the 6 GHz or 5 GHz band, providing additional deployment flexibility.
Features
- Advanced Wi-Fi 7 capabilities: Supports IEEE 802.11be features including Multi-Link Operation (MLO), OFDMA, DL MU-MIMO, UL MU-MIMO, 4096-QAM modulation, Target Wake Time (TWT), and 512 Compressed Block Ack
- Enhanced wireless security: Supports WPA3 for improved enterprise wireless network security
- MACsec uplink security: Supports IEEE 802.1AE MACsec on the uplink port
- OmniVista network management: Supported by the OmniVista Network Management System with both cloud-based and on-premises deployment models
- Simplified cluster deployment: Supports cluster architecture for simplified plug-and-play deployment of up to 255 access points
- Advanced Quality of Service: Supports finely tuned QoS parameters to provide appropriate service levels for applications such as voice, video, and desktop sharing
- Radio Dynamic Adjustment (RDA): Automatically assigns channels (DFS) and power settings (TPC), helping access points avoid radio frequency interference (RFI) and deliver reliable, high-performance WLAN connectivity

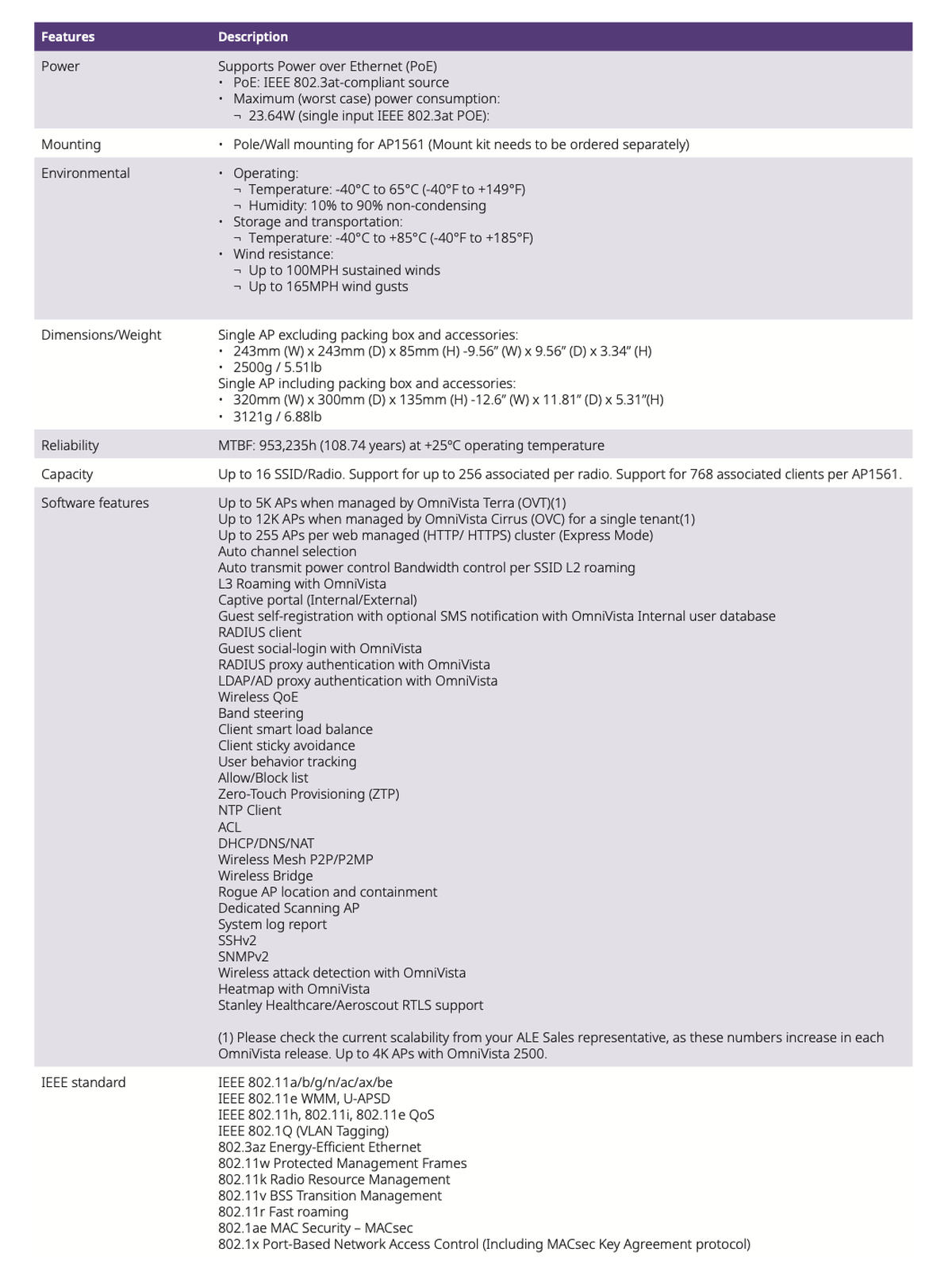

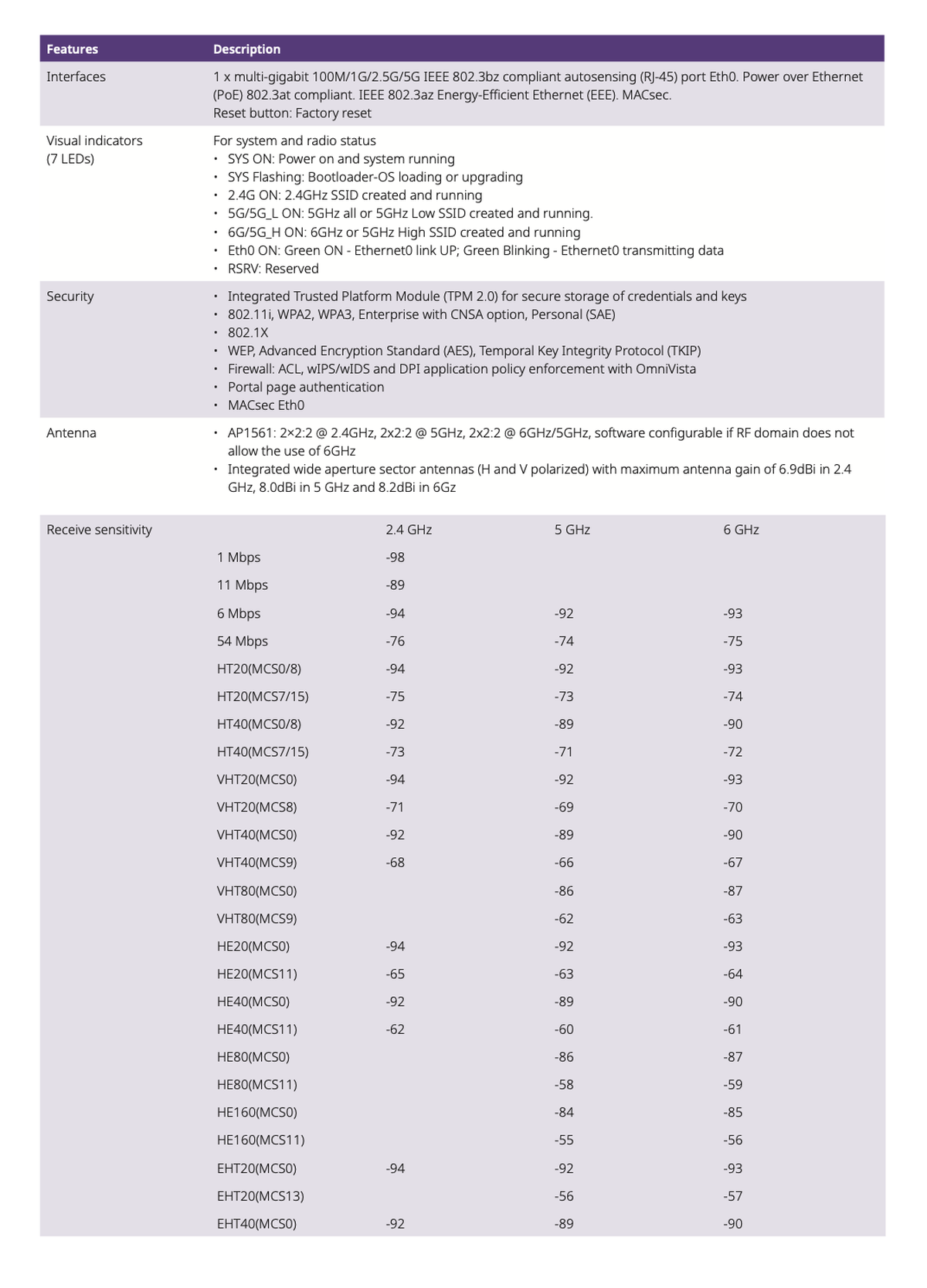

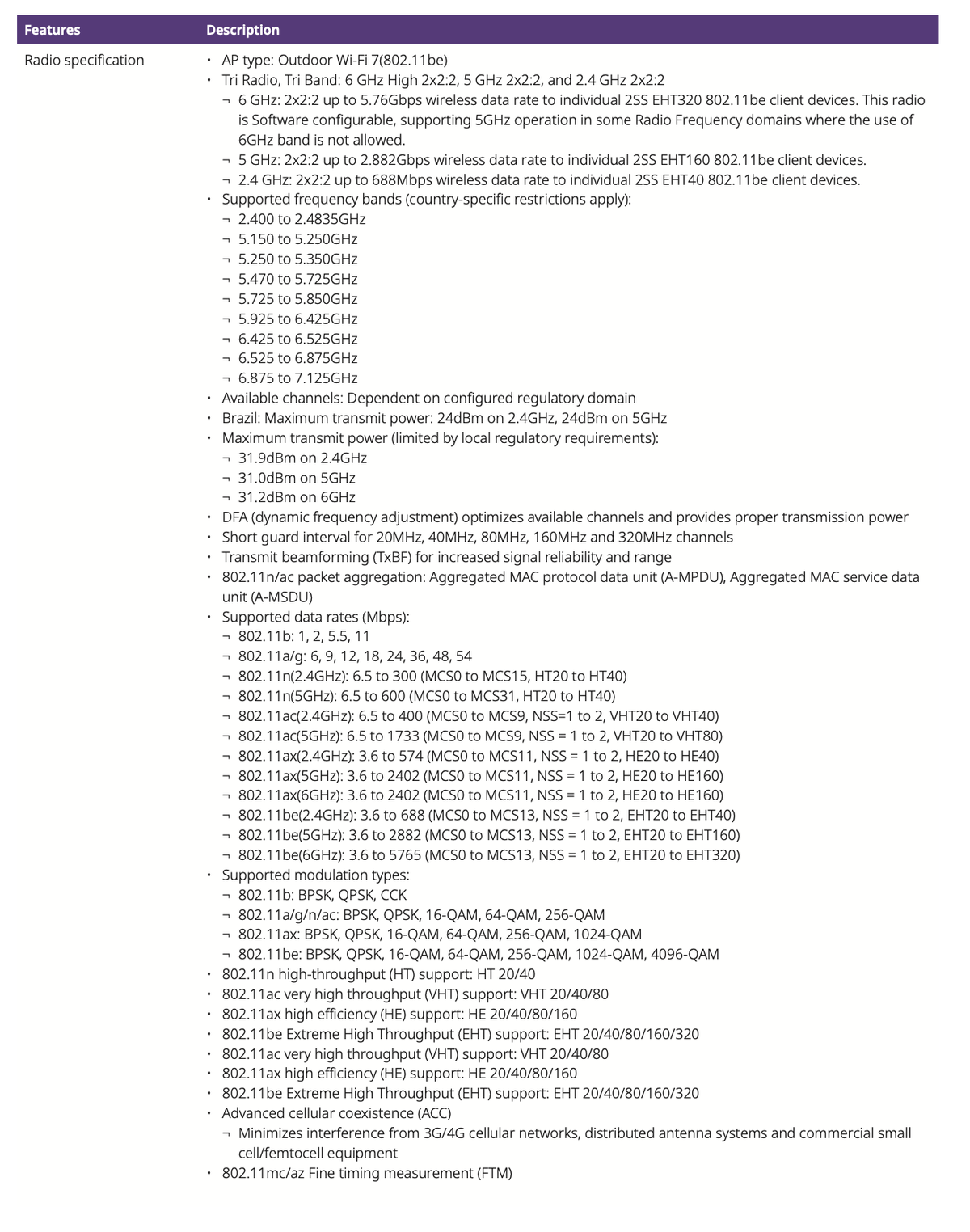

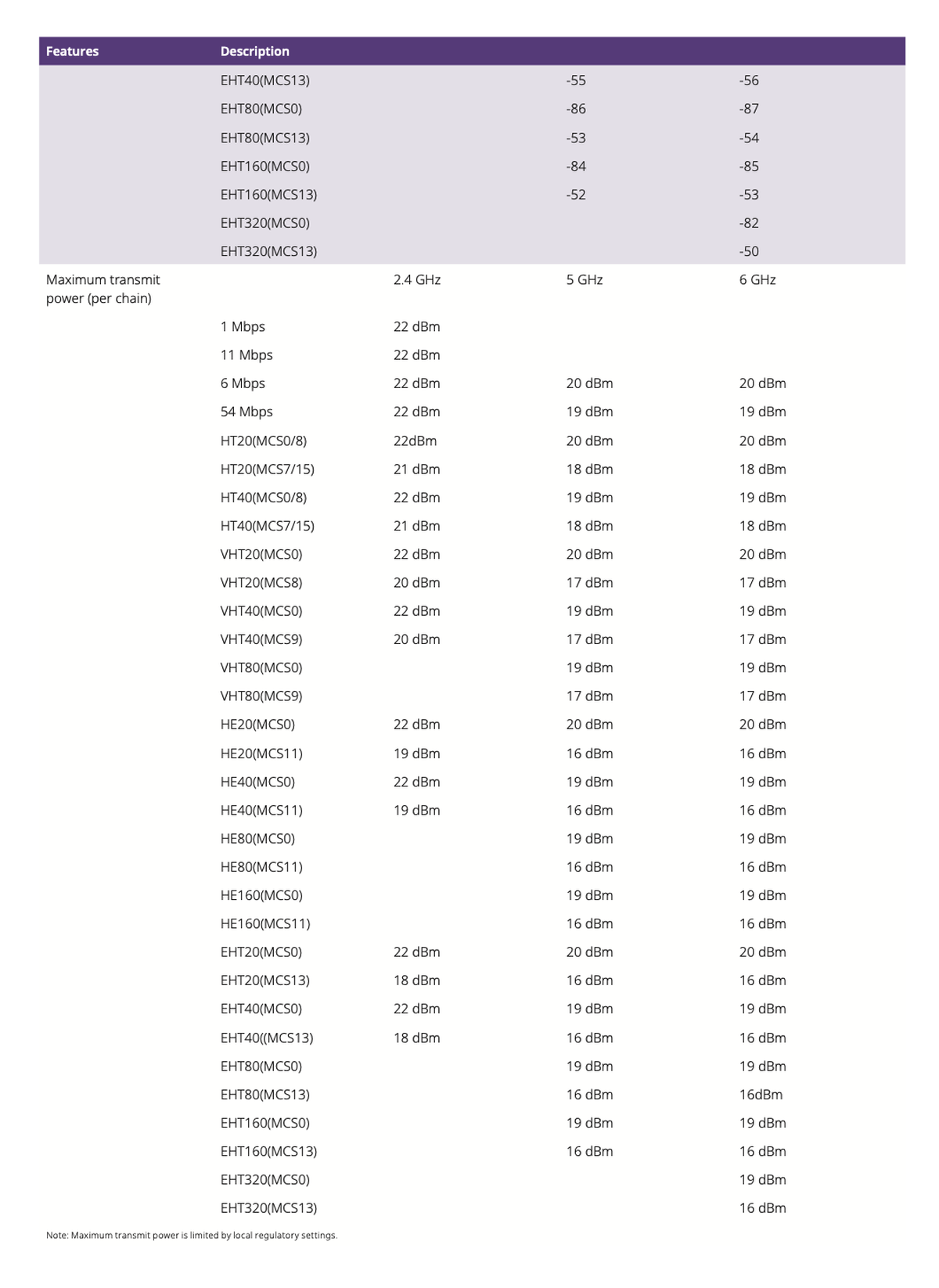

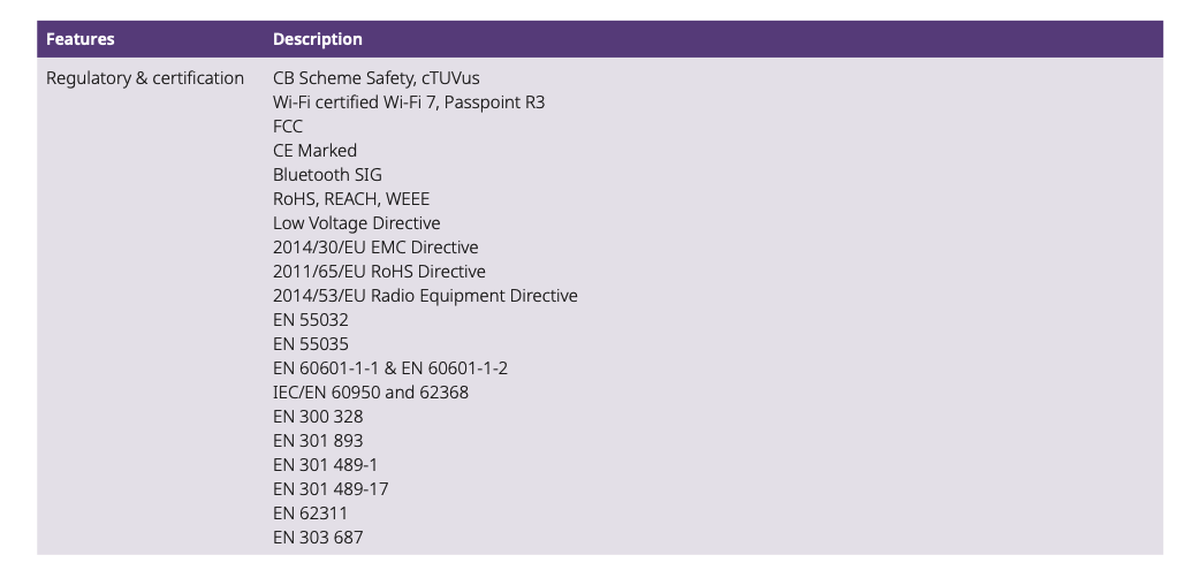

Specifications
.png)
.png)
.png)
.png)
.png)
Related Documents
OmniAccess Stellar AP1561 Datasheet
Official Alcatel-Lucent Enterprise OmniAccess Stellar AP1561 datasheet, including detailed technical specifications, Wi-Fi 7 capabilities, radio specifications, network interfaces, outdoor environmental specifications, security features, and related product information.
