Wi-Fi 7

OmniAccess Stellar AP1540 Series

Wi-Fi 7 Indoor

Features: High-range, ultra-high-performance Wi-Fi 7 access point series designed for high-density enterprise environments; Available in two models: AP1541 with integrated omnidirectional antennas and AP1542 with eight external antenna connectors; Five-radio architecture featuring dedicated 2.4 GHz, 5 GHz, and 6 GHz radios, a full-band scanning radio, and an integrated Bluetooth/Zigbee radio; Delivers a maximum aggregate data rate of up to 18.67 Gbps for high-bandwidth, low-latency wireless connectivity; Provides dual 10GE connectivity and supports Express, on-premises, and cloud management modes through a single software version

Description

The Alcatel-Lucent Enterprise OmniAccess® Stellar AP1540 Series is a high-range, ultra-high-performance Wi-Fi 7 access point series designed for high-density enterprise environments where reliability, security, and scalability are essential. With a powerful five-radio architecture, high aggregate throughput, and flexible dual 10 Gigabit Ethernet connectivity, the AP1540 Series delivers predictable low-latency connectivity, scalability, and reliable network performance for high-density users, immersive applications, and smart building environments.

The AP1540 Series includes two models: the AP1541 with integrated omnidirectional antennas for standard enterprise deployments such as lecture halls, large classrooms, conference rooms, and hotel common areas; and the AP1542 with eight external antenna connectors for environments requiring specific or directional wireless coverage, such as high ceilings in arenas, long corridors, and warehouses.

Both models feature a five-radio architecture with 4x4:4 radios across the 2.4 GHz, 5 GHz, and 6 GHz bands, a dedicated full-band scanning radio, and an integrated Bluetooth/Zigbee radio. With a maximum aggregate data rate of up to 18.67 Gbps and dual 10GE connectivity, the AP1540 Series is designed to support high-density, high-capacity enterprise wireless networks.

Add Inquiry (0)

Features

Advanced Wi-Fi 7 capabilities: Supports IEEE 802.11be features including Multi-Link Operation (MLO), OFDMA, MU-MIMO, up to 320 MHz channel bandwidth, 4096-QAM, Multi Resource Unit (MRU), Preamble Puncturing, and Restricted Target Wake Time (R-TWT)
Enhanced wireless security: Supports MACsec and WPA3 with backward compatibility for legacy client devices in mixed deployment environments
OmniVista network management: Supports the OmniVista Network Management System with both cloud-based and on-premises deployment options
Simplified cluster deployment: Supports cluster architecture for plug-and-play deployment of up to 255 access points
Advanced Quality of Service: Provides granular QoS parameters to deliver appropriate service levels for voice, video, desktop sharing, and other applications
Radio Dynamic Adjustment (RDA): Automatically assigns channels (DFS) and transmit power (TPC), helping access points avoid radio frequency interference (RFI) and maintain reliable, high-performance WLAN connectivity

Model Options

The OmniAccess Stellar AP1540 Series includes AP1541 and AP1542 models, providing different antenna configurations to address various enterprise wireless coverage requirements.

OmniAccess Stellar AP1541

Features integrated omnidirectional antennas for standard enterprise wireless deployments.

Integrated omnidirectional antennas
Designed for environments such as lecture halls, large classrooms, conference rooms, and hotel common areas
Five-radio architecture
6 GHz 4x4:4, 5 GHz 4x4:4, and 2.4 GHz 4x4:4
Dedicated full-band scanning radio
Integrated Bluetooth/Zigbee radio
Maximum aggregate data rate of 18.67 Gbps
Dual 10GE connectivity

OmniAccess Stellar AP1542

Features eight external antenna connectors for environments requiring specific wireless coverage or customized RF deployments.

Eight external antenna connectors
Designed for specific coverage requirements such as high ceilings in arenas, long corridors, and warehouses
Five-radio architecture
6 GHz 4x4:4, 5 GHz 4x4:4, and 2.4 GHz 4x4:4
Dedicated full-band scanning radio
Integrated Bluetooth/Zigbee radio
Maximum aggregate data rate of 18.67 Gbps
Dual 10GE connectivity

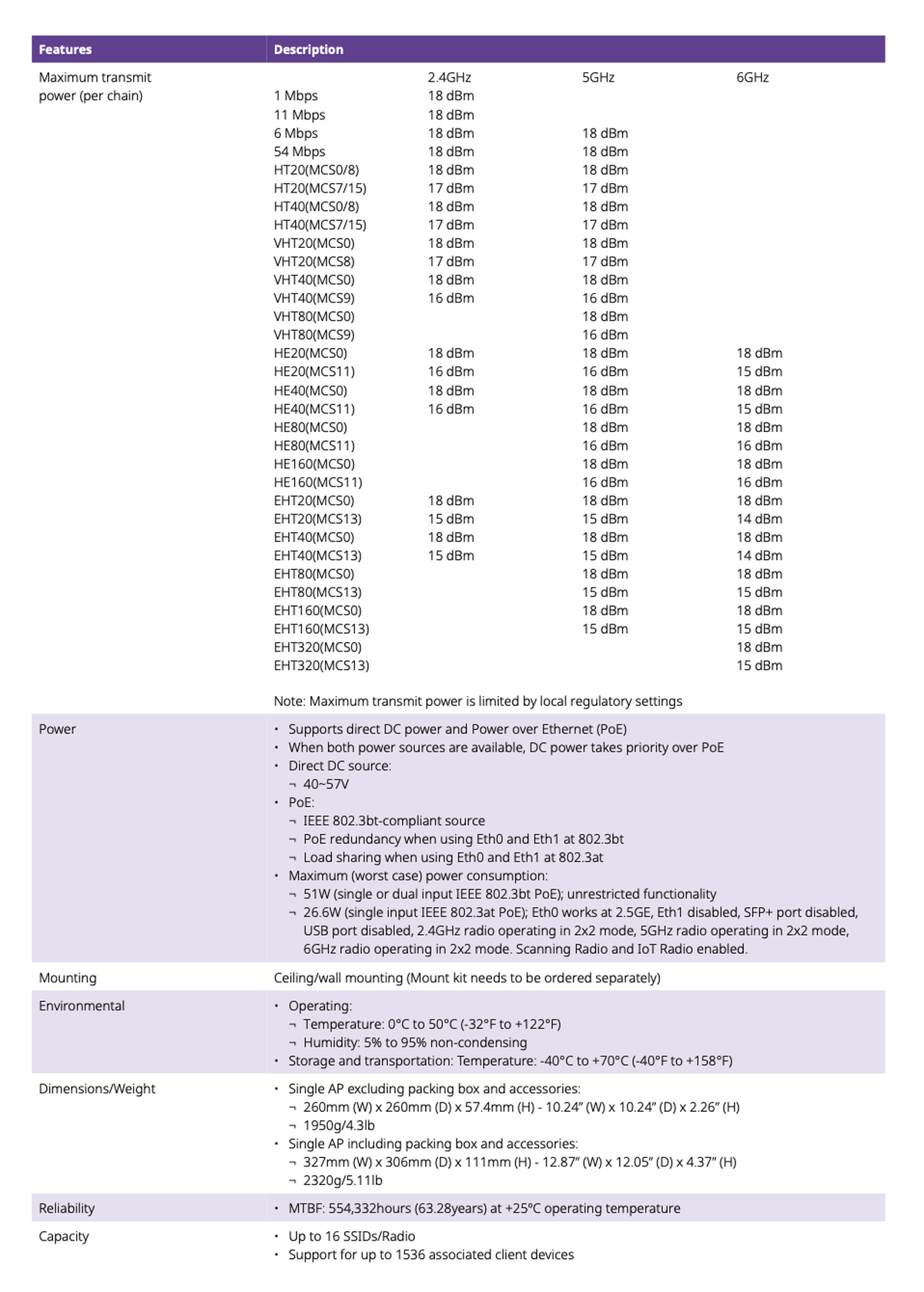

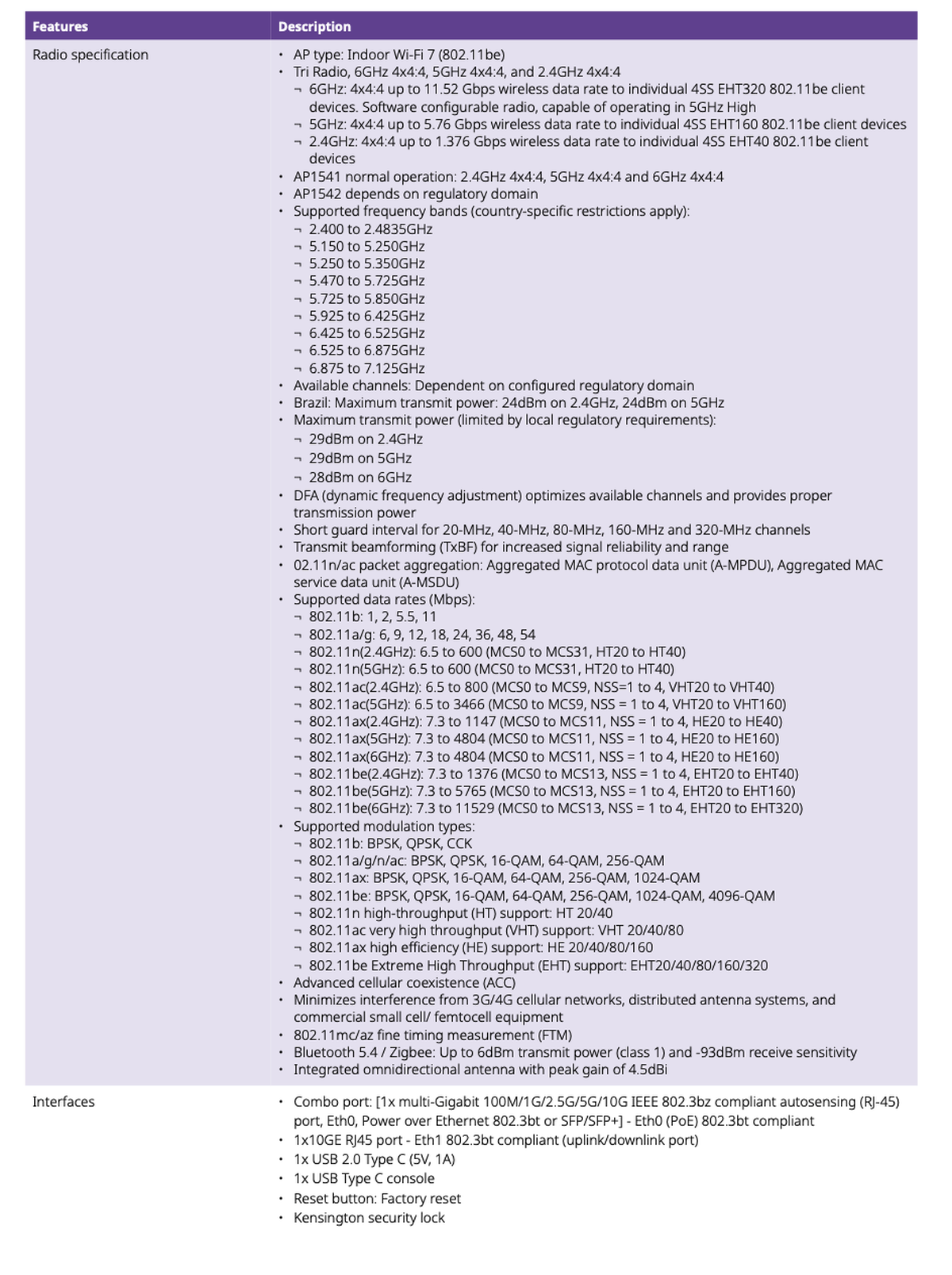

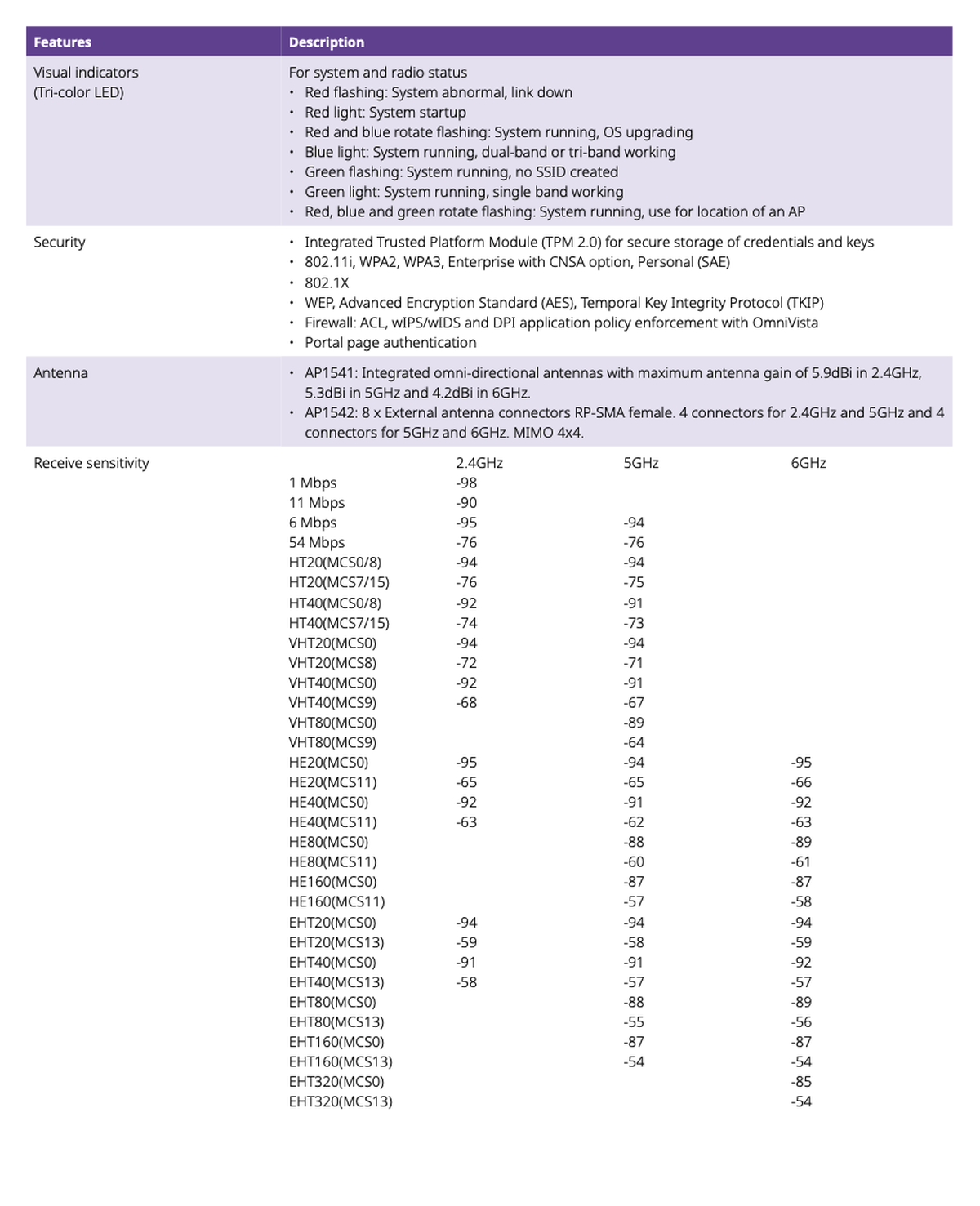

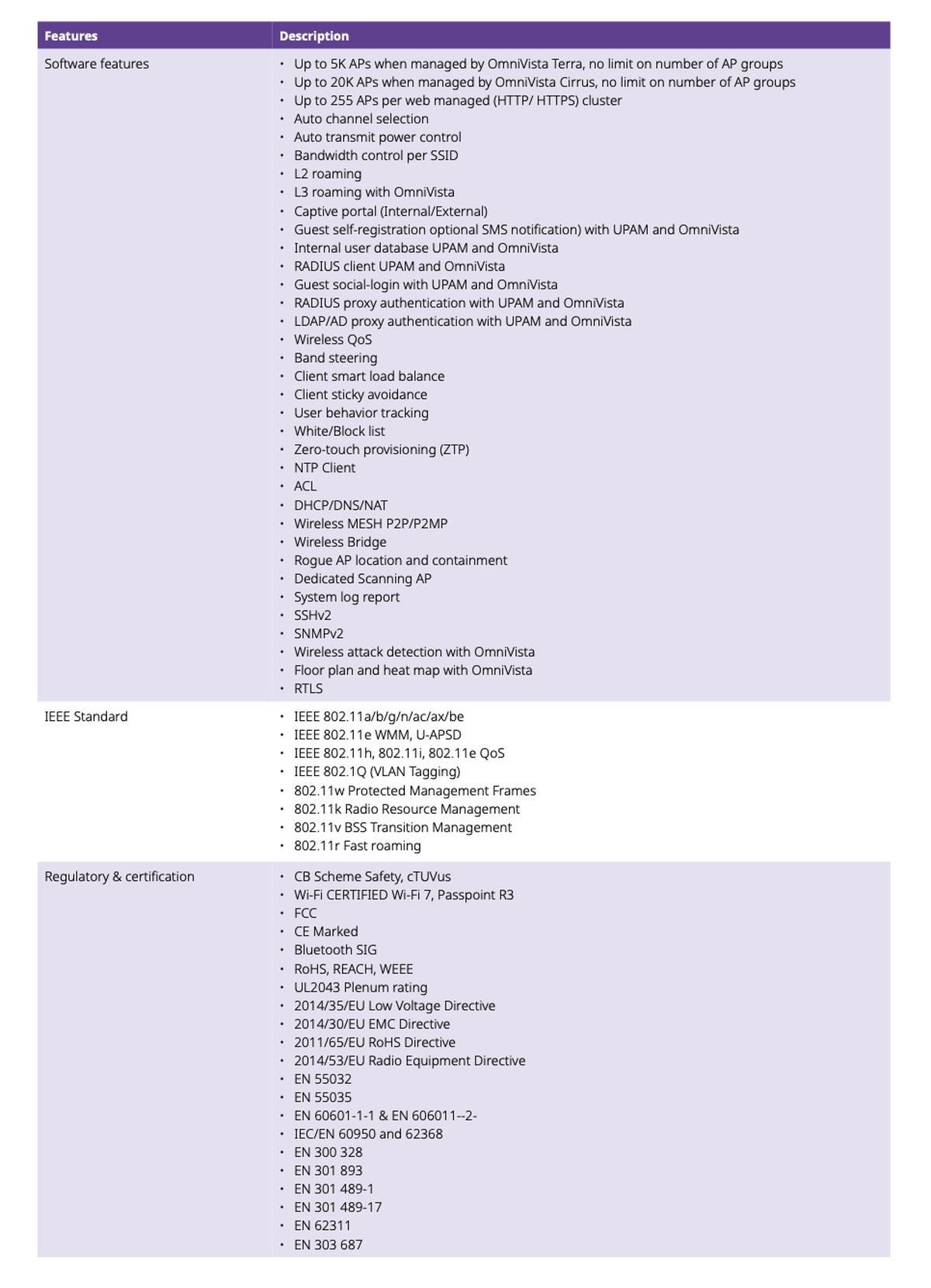

Specifications
