Wi-Fi 7
OmniAccess Stellar AP1501
- Features
- Entry-range, cost-effective Wi-Fi 7 access point designed for indoor deployments
- Tri-radio design supporting 2.4 GHz, 5 GHz, and 6 GHz bands to address the capacity and connectivity needs of next-generation mobility
- Supports a maximum aggregate throughput of up to 9.33 Gbps
- Provides one 2.5GbE Multigig uplink with Power over Ethernet (PoE) input
- Supports three management modes — Express, on-premises, and cloud — through a single software version, simplifying IT operations
Description
The Alcatel-Lucent Enterprise OmniAccess® Stellar AP1501 provides an accessible entry point into Wi-Fi 7, combining next-generation wireless performance with the cost efficiency enterprises expect. Designed for mid-density and distributed environments, it delivers the high bandwidth, low latency, and reliability required for next-generation mobility and connected services.
The OmniAccess Stellar AP1501 features a tri-radio design operating across the 2.4 GHz, 5 GHz, and 6 GHz bands, with a maximum aggregate throughput of up to 9.33 Gbps. It also provides a 2.5GbE Multigig uplink with Power over Ethernet (PoE) input to support high-performance enterprise wireless deployments.
Supporting IEEE 802.11be Wi-Fi 7 technologies, the AP1501 includes Multi-Link Operation (MLO), MU-MIMO, channel bandwidth of up to 320 MHz, 4096-QAM, Multi Resource Unit (MRU), Preamble Puncturing, and Restricted Target Wake Time (R-TWT). Together with enterprise-grade security, flexible management, and Radio Dynamic Adjustment (RDA), the AP1501 provides a reliable and efficient WLAN solution for modern enterprise environments.
Features
- Advanced Wi-Fi 7 capabilities: Supports IEEE 802.11be features including Multi-Link Operation (MLO), MU-MIMO, up to 320 MHz channel bandwidth, 4096-QAM, Multi Resource Unit (MRU), Preamble Puncturing, and Restricted Target Wake Time (R-TWT)
- Enhanced wireless security: Supports WPA3 with backward compatibility for mixed deployments with legacy clients
- OmniVista network management: Supported by the OmniVista Network Management System with cloud-based and on-premises deployment models
- Simplified cluster deployment: Supports cluster architecture for simplified plug-and-play deployment of up to 255 access points
- Advanced Quality of Service: Supports finely tuned QoS parameters to differentiate applications and provide appropriate service levels for voice, video, desktop sharing, and other traffic
- Radio Dynamic Adjustment: RDA technology automatically assigns channels (DFS) and power settings (TPC), helping access points avoid radio frequency interference (RFI) and maintain reliable, high-performance WLAN connectivity

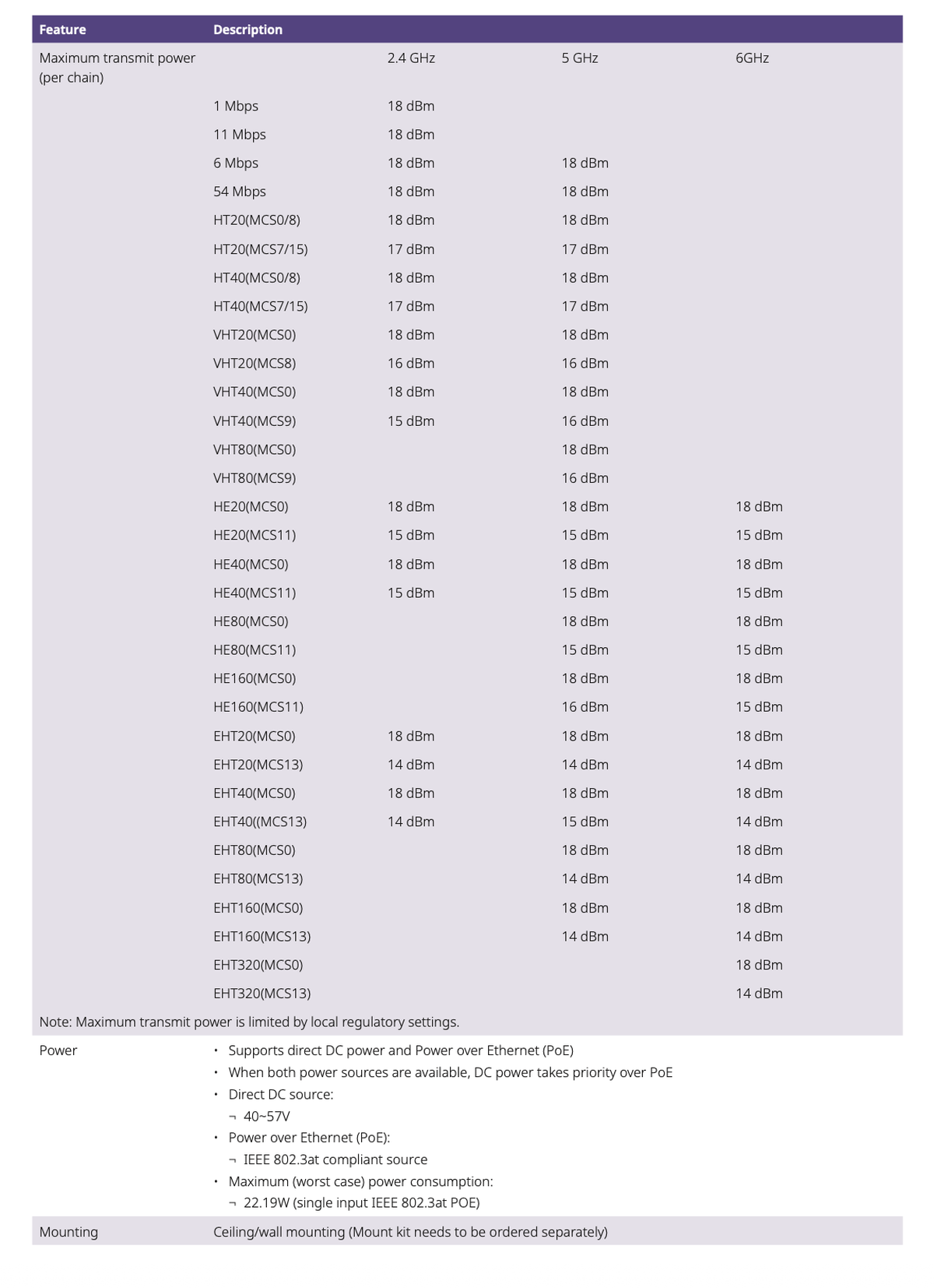

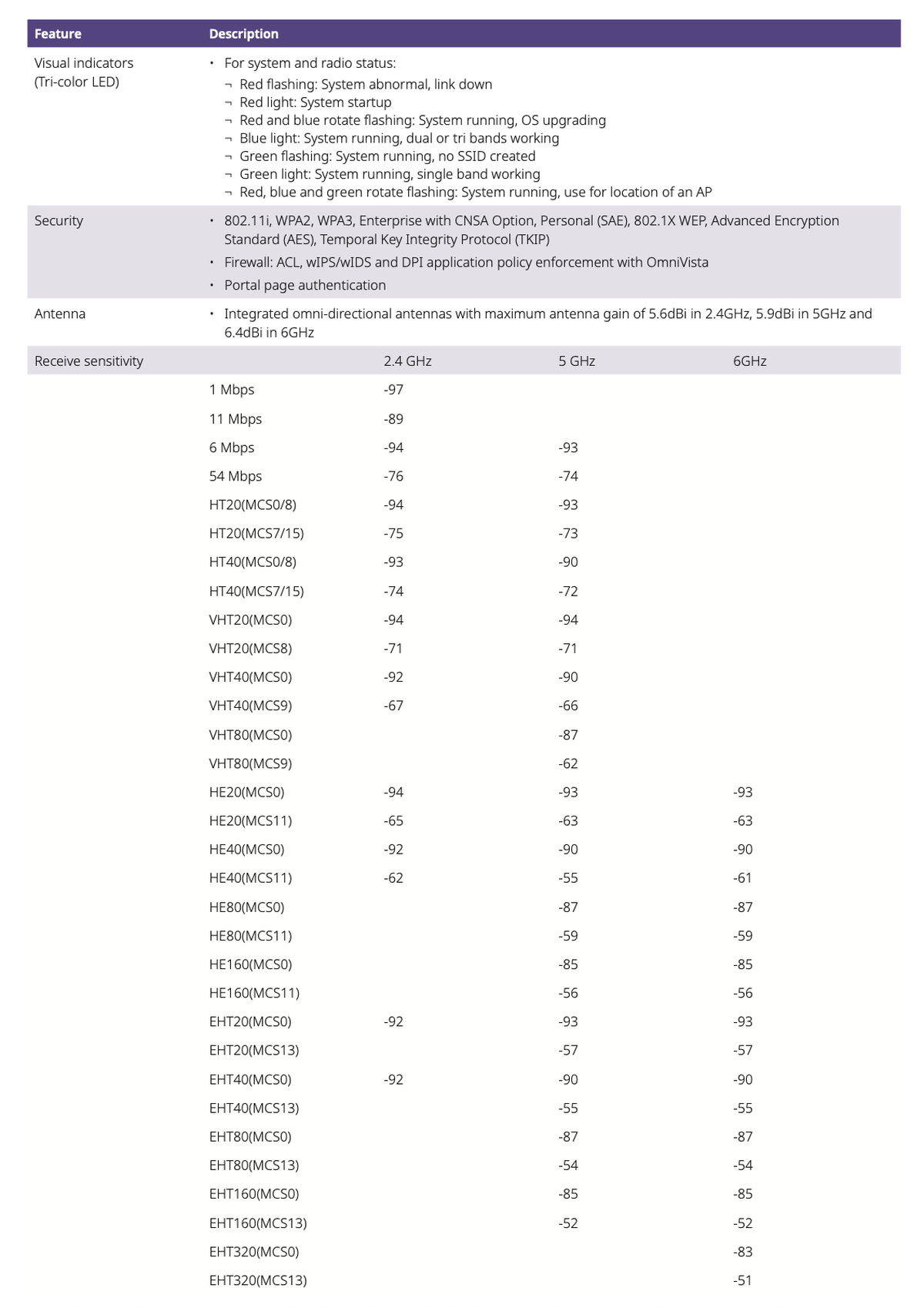

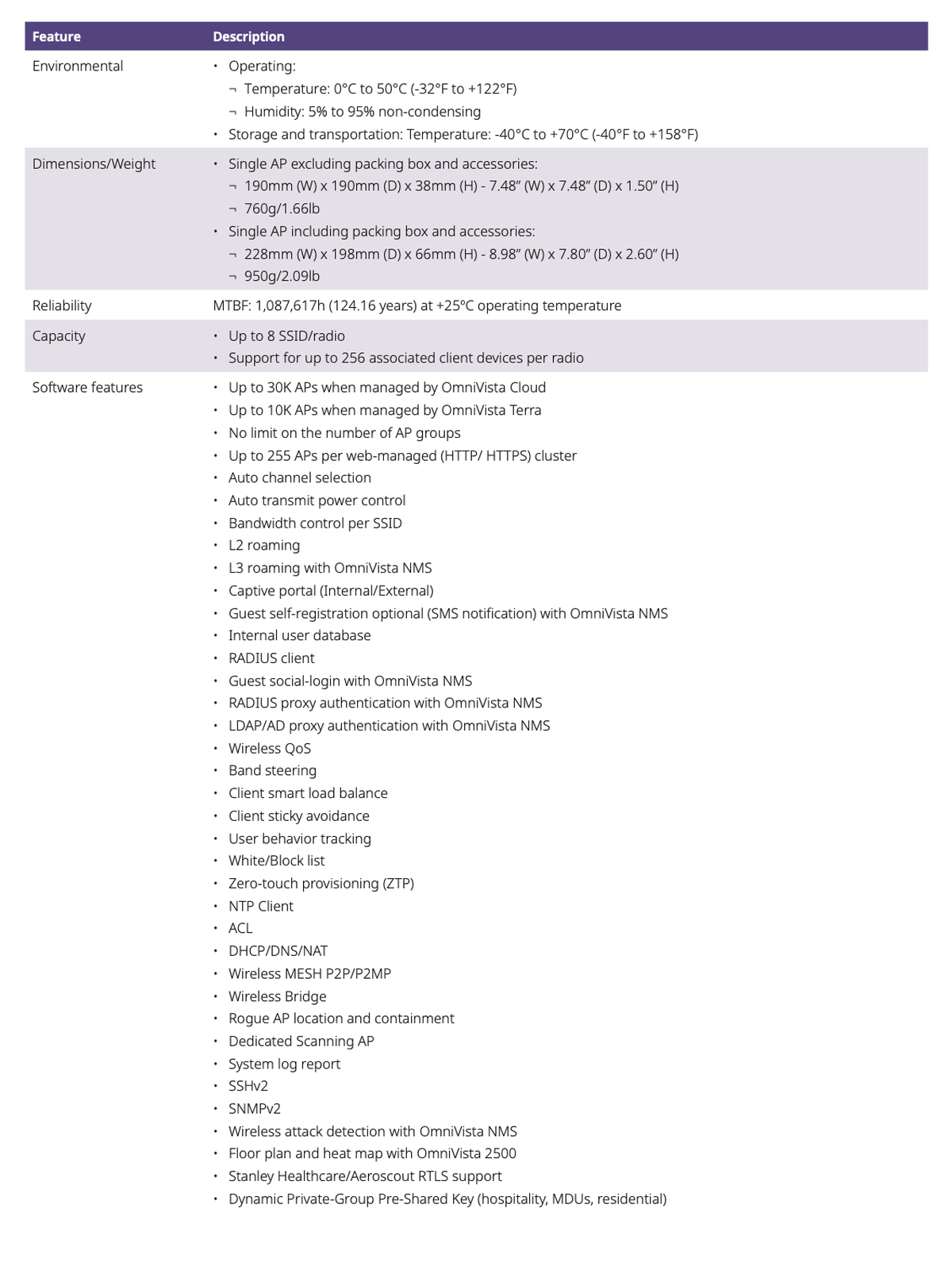

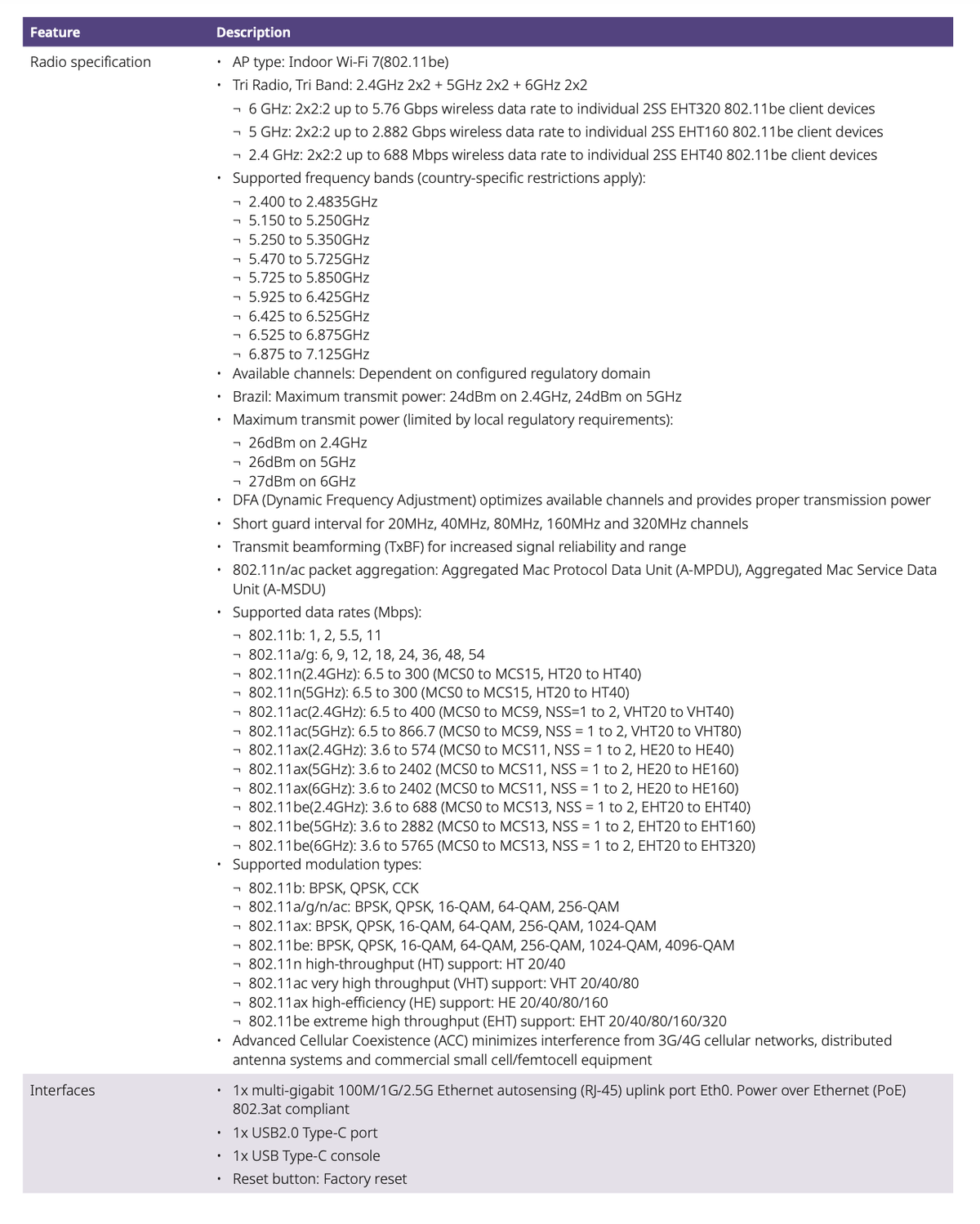

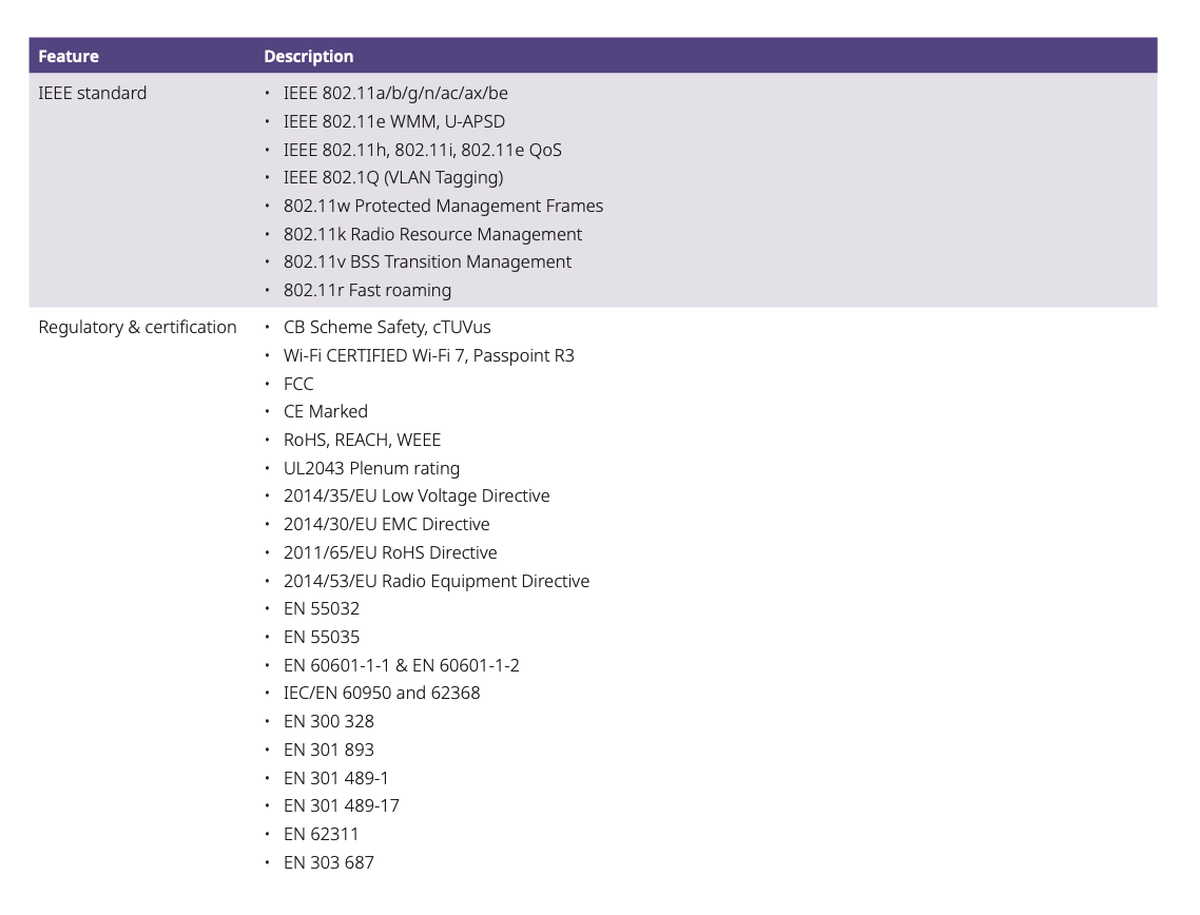

Specifications
.png)
.png)
.png)
.png)
.png)
Related Documents
OmniAccess Stellar AP1501 Datasheet
Official Alcatel-Lucent Enterprise OmniAccess Stellar AP1501 datasheet, including detailed technical specifications, Wi-Fi 7 capabilities, radio specifications, network interfaces, power requirements, and product features.
