Industrial Environment

OmniSwitch 6575

Compact Hardened Ethernet Switches

Features: Rugged, fanless industrial design supporting an operating temperature range of -40°C to +75°C, with high EMI/EMC tolerance, flexible power options, and surge protection; Supports up to 90W PoE per port, with Fast PoE and Perpetual PoE for high-power devices such as PTZ cameras, LED lighting, industrial controllers, and smart building gateways; Supports IEEE 1588v2 PTP, G.8275.1/.2, and SyncE* precision timing technologies, delivering nanosecond-level synchronization; Integrates MACsec-256 encryption, advanced network redundancy protocols, Zero-Touch Provisioning, and network automation to provide security, rapid deployment, and high availability for mission-critical networks

Description

The Alcatel-Lucent Enterprise OmniSwitch 6575 family consists of rugged, fanless, fully managed Gigabit Ethernet switches designed for harsh and mission-critical industrial environments. Its compact industrial design supports DIN rail installation and 19-inch rack-mount options and is built to withstand extreme temperatures, high EMI/EMC interference, and demanding outdoor deployment conditions. It is suitable for smart transportation, railways, utilities, smart cities, and industrial automation environments.

OmniSwitch 6575 supports up to 90W PoE, flexible power input options, and high surge protection to support high-power devices such as PTZ cameras, LED lighting, and industrial controllers. Zero-Touch Provisioning and network automation capabilities help accelerate deployment and reduce network operational overhead.

For real-time and precision timing applications, OmniSwitch 6575 supports IEEE 1588v2 PTP, G.8275.1/.2, SyncE*, and MACsec-256 encryption, providing nanosecond-level synchronization and secure end-to-end communications to meet the requirements of modern industrial and critical infrastructure networks.

Add Inquiry (0)

Features

Flexible industrial mounting and power options: Supports DIN rail, wall/panel, and 19-inch rack mounting options, along with dual redundant AC/DC power inputs to accommodate different industrial deployment requirements
Advanced network management and automation: Supports AOS CLI, Python/Bash scripting, WebView GUI, SNMP, REST API, and NAPALM for network automation and simplified operations
OmniVista® Cirrus cloud management: Provides secure and scalable cloud-based network management, integrating network access, policy control, and advanced analytics
Virtual Chassis: Supports up to four switches operating as a single logical device, with Remote Virtual Chassis and ISSU capabilities for enhanced resiliency and simplified management
Auto-Fabric and Zero-Touch Provisioning: Automates network topology and protocol discovery, enabling plug-and-play deployment and consistent configuration
Secure backup and rapid unit replacement: Supports encrypted backup and restore via USB, enabling rapid switch replacement in the field and minimizing service disruption
Comprehensive industrial certifications: Complies with relevant standards for electric power substations, railway, transportation, and marine environments to meet stringent industrial requirements

Model Options

The OmniSwitch 6575 family includes the OS6575-P12 and OS6575-U28 models, providing flexible options for different industrial network deployment and connectivity requirements.

OmniSwitch 6575-P12

Layer 2 and Layer 3 hardened Gigabit Ethernet fanless switch designed for mission-critical deployments.

8 × 10/100/1000 Base-T RJ-45 802.3bt PoE ports, supporting up to 90W per port
4 × 1G/10G SFP+ uplinks
MACsec-256 on all ports
Up to 360W PoE budget with Fast PoE / Perpetual PoE support
IP30 protection and fanless design
-40°C to +75°C operating temperature range
Dual power inputs
High EMI/EMC tolerance and up to 6kV surge protection
DIN rail and wall/panel mounting support
Layer 2 switching and Layer 3 routing
Virtual Chassis support for up to four units
IEEE 1588v2 PTP precision timing support

OmniSwitch 6575-U28

Layer 2 and Layer 3 hardened Gigabit Ethernet fiber aggregation switch designed for mission-critical deployments.

20 × 100/1000 Base-X SFP ports
4 × Combo RJ45 PoE ports, supporting up to 90W per port
4 × 1G/10G SFP+ uplinks
MACsec-256 on all ports
Up to 120W PoE budget
IP30 protection and fanless design
-40°C to +75°C operating temperature range
Hot-swappable power supplies
High EMI/EMC tolerance and up to 6kV surge protection
1RU 19-inch rack-mount design
Layer 2 switching and Layer 3 routing
Virtual Chassis support for up to four units
IEEE 1588v2 PTP precision timing support

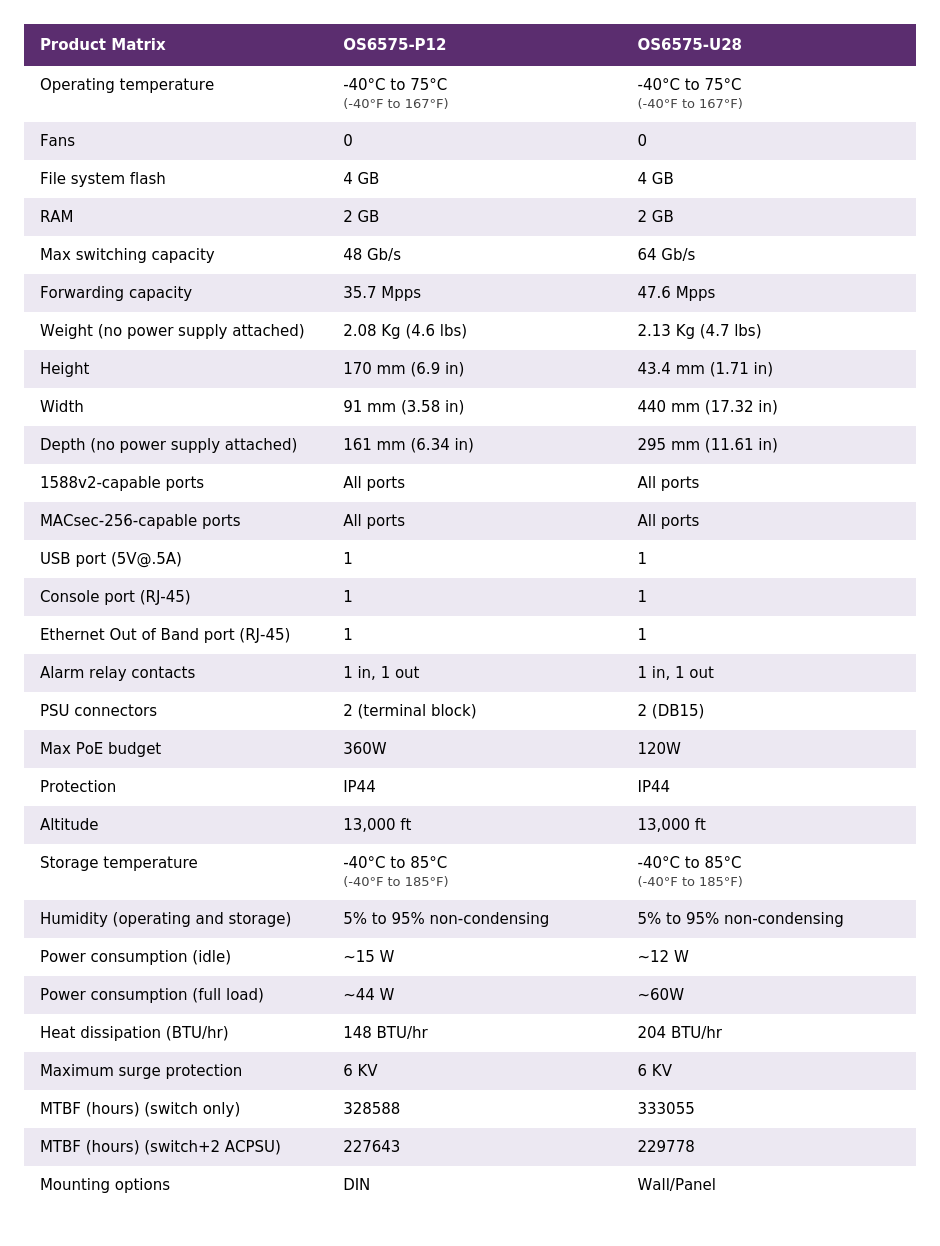

Specifications
