Connectivity boards : The connectivity boards offer different types of communication ports as ISDN/analog accesses or digital/analog voice interfaces or data interfaces… All boards are identical and based on data formats. Voice and data connectors are RJ45. Optional processing units or DSP boards are offered to boost the application capability. Each hardware board takes a slot in a cabinet, except daughterboards (AFU-1, MCV, MADA ...)
Public & Private accesses • Digital Public Access Board - 1 Primary Rate T1 Access• E1-CAS Digital access board for E1 line• T1-CAS Digital access board for T1 line• APA8 Analog trunk access board for 8 trunk lines• APA4 Analog trunk access board for 4 trunk lines• CLIDSP APA daughtercard for local management of CLI signals• 16 kHz metering card• E1 - T2 Balun Kit - RJ45 to coaxial• Digital Public Access Board - 1 Primary Rate E1 T2 Access• Digital Public Access Board - 1 Primary Rate Access E1 - DASS2
User interfaces • ISDN mixed board / 4 T0 + 8 UAI + 4 SLI• ISDN mixed board / 4 T0 + 4 UAI + 8 SLI• ISDN mixed board / 2 T0 + 4 UAI + 4 SLI• Reflexes? Interfaces Board - 8 UA interfaces• Reflexes? Interfaces Board - 4 UA interfaces• Digital interfaces board UAI16-1 : 16 digital interfaces• Analog Interfaces Board SLI16-1 : 16 analog interfaces• Analog Interfaces Board SLI8-1 : 8 analog interfaces• Analog Interfaces Board SLI4-1 : 4 analog interfaces• LANX16-2 Ethernet LAN switch board equipped with 16 ports

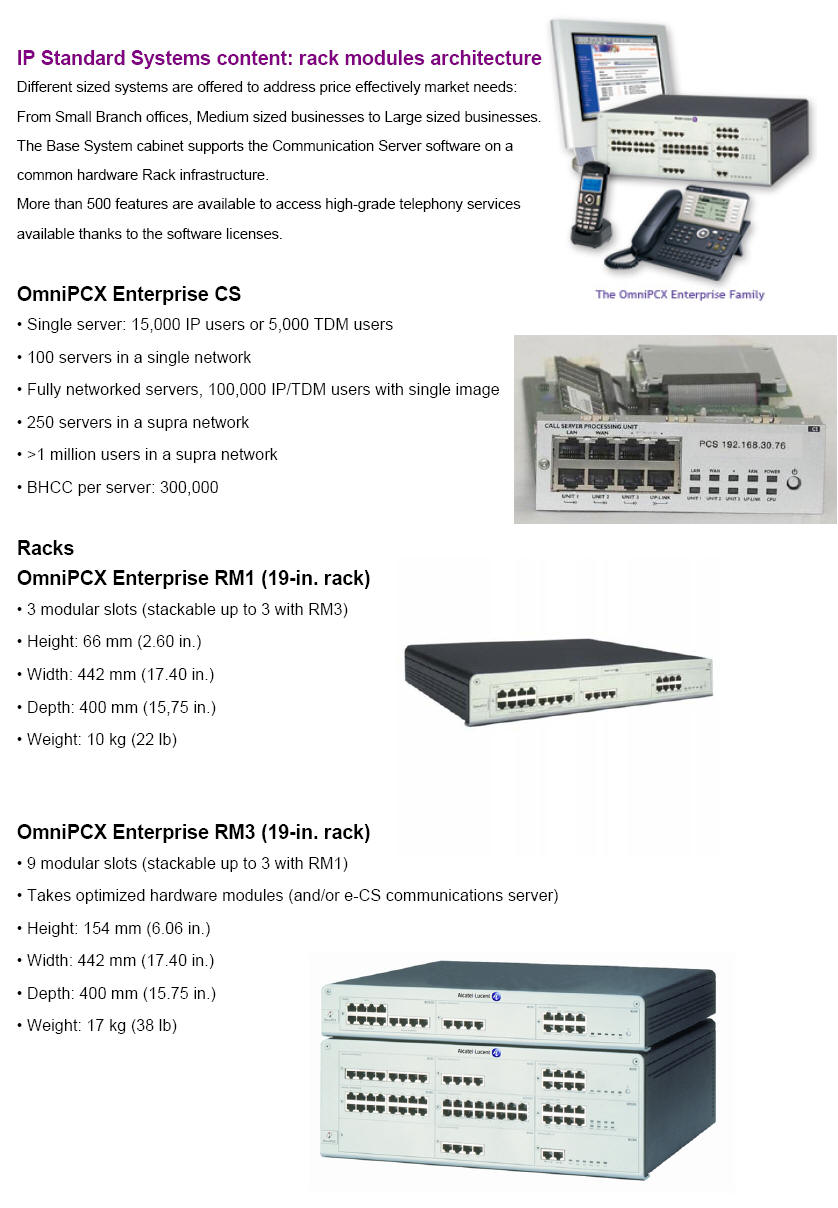

Mechanics • Mounting kit for Rack 1• Mounting kit for Rack 3• Blind slot stiffner (x1)• Blind slot stiffners kit (x5)•Rack1 module with 110V/230V power supply (must be used with externalbattery and rack) • Rack1 module with 48V power supply• Rack3 module with 48V power supply•Rack3 module with 110V power supply (must be used with external batteryand rack) • Kit for Common Hardware battery mounting in standard 19 inch rack• Wall mounted kit for Rack 1
Power supply back-up • Rack box for external batteries 12V• Rack box for external batteries 36V• External stack battery box 12V for OmniPCX Office Rack 1• External stack battery box 36V for OmniPCX Office Rack 3• 7AH/12V battery• Rack charger 48V/14AH without rectifier• Rectifier 500W for rack charger• Extension battery rack
|
|
